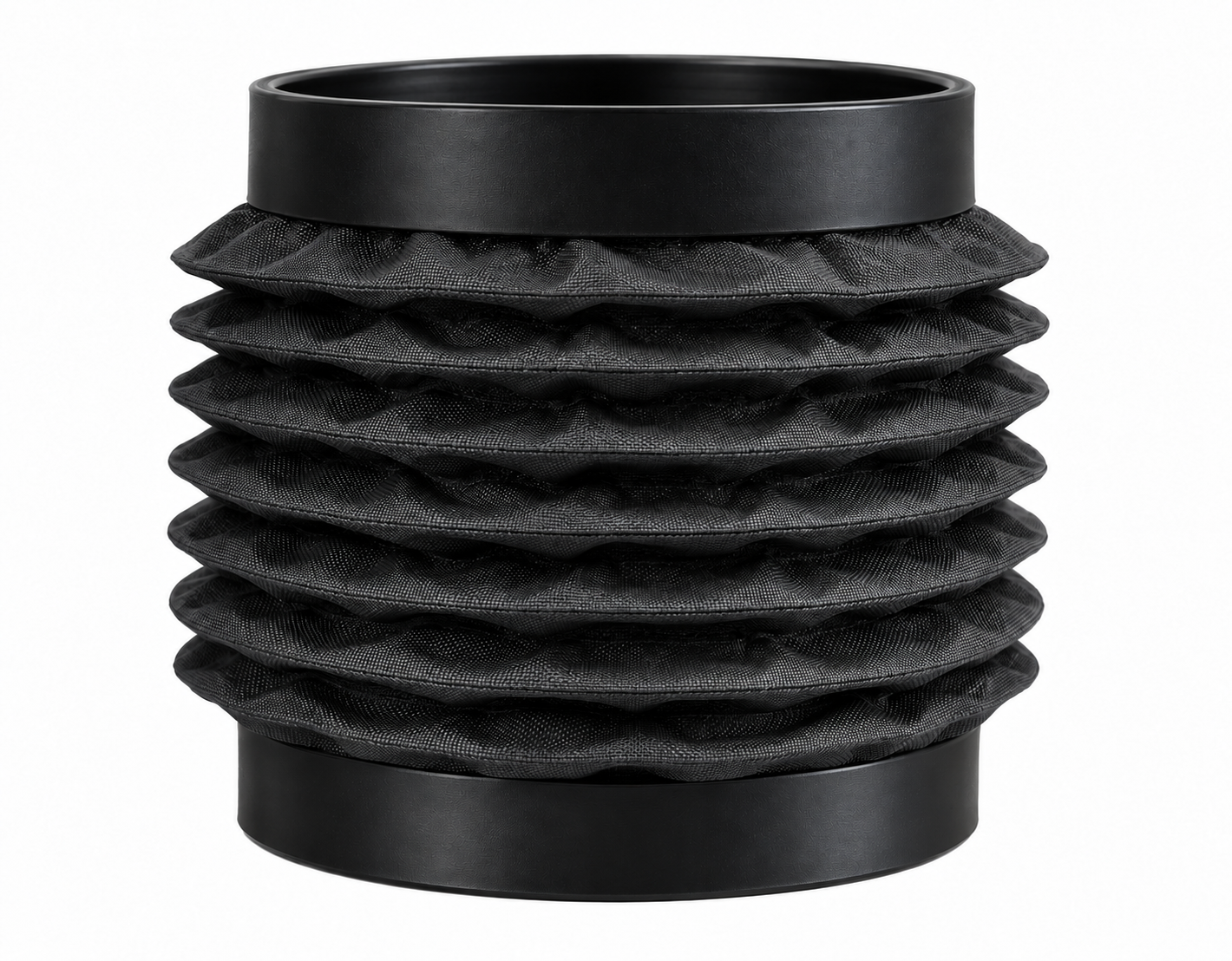

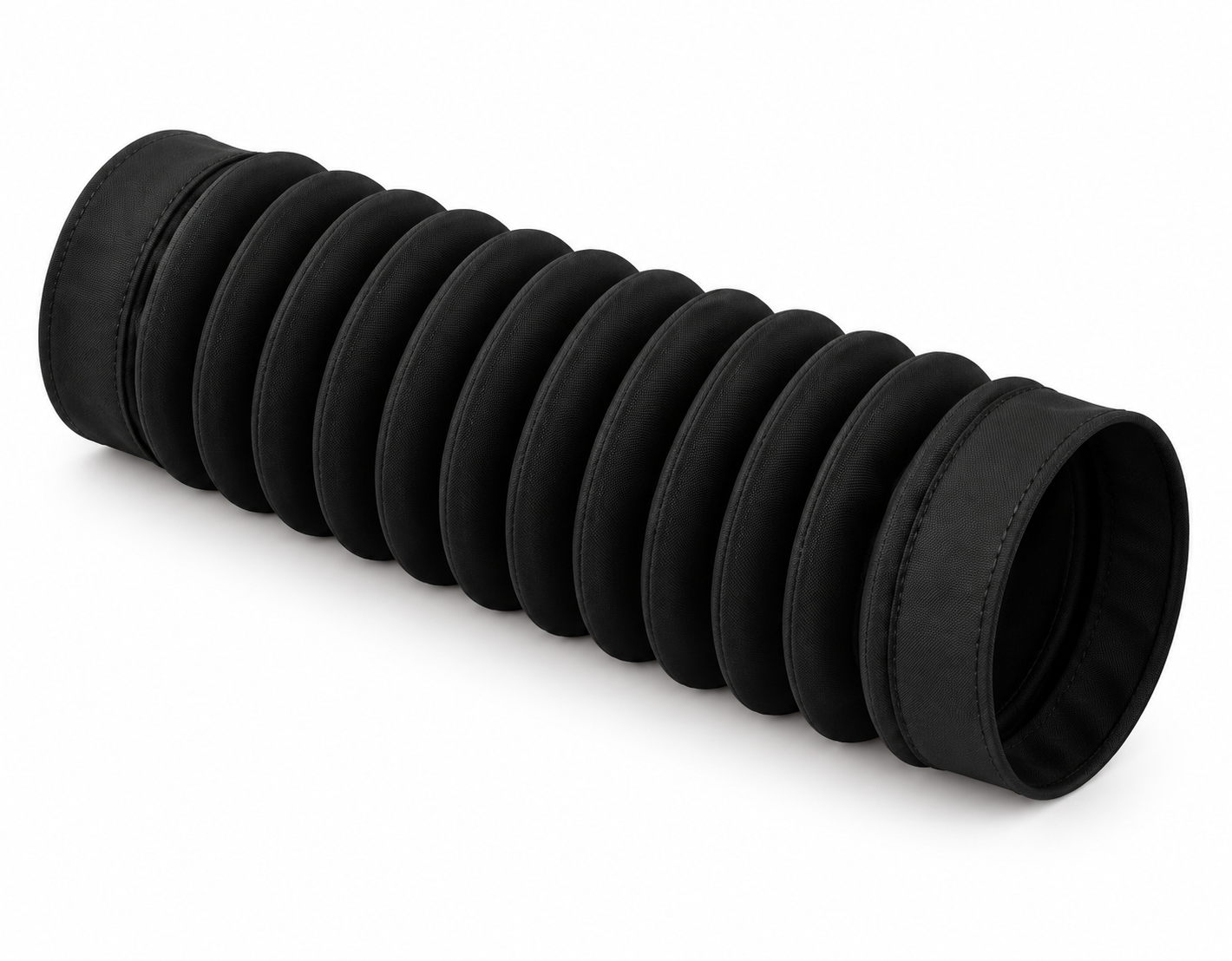

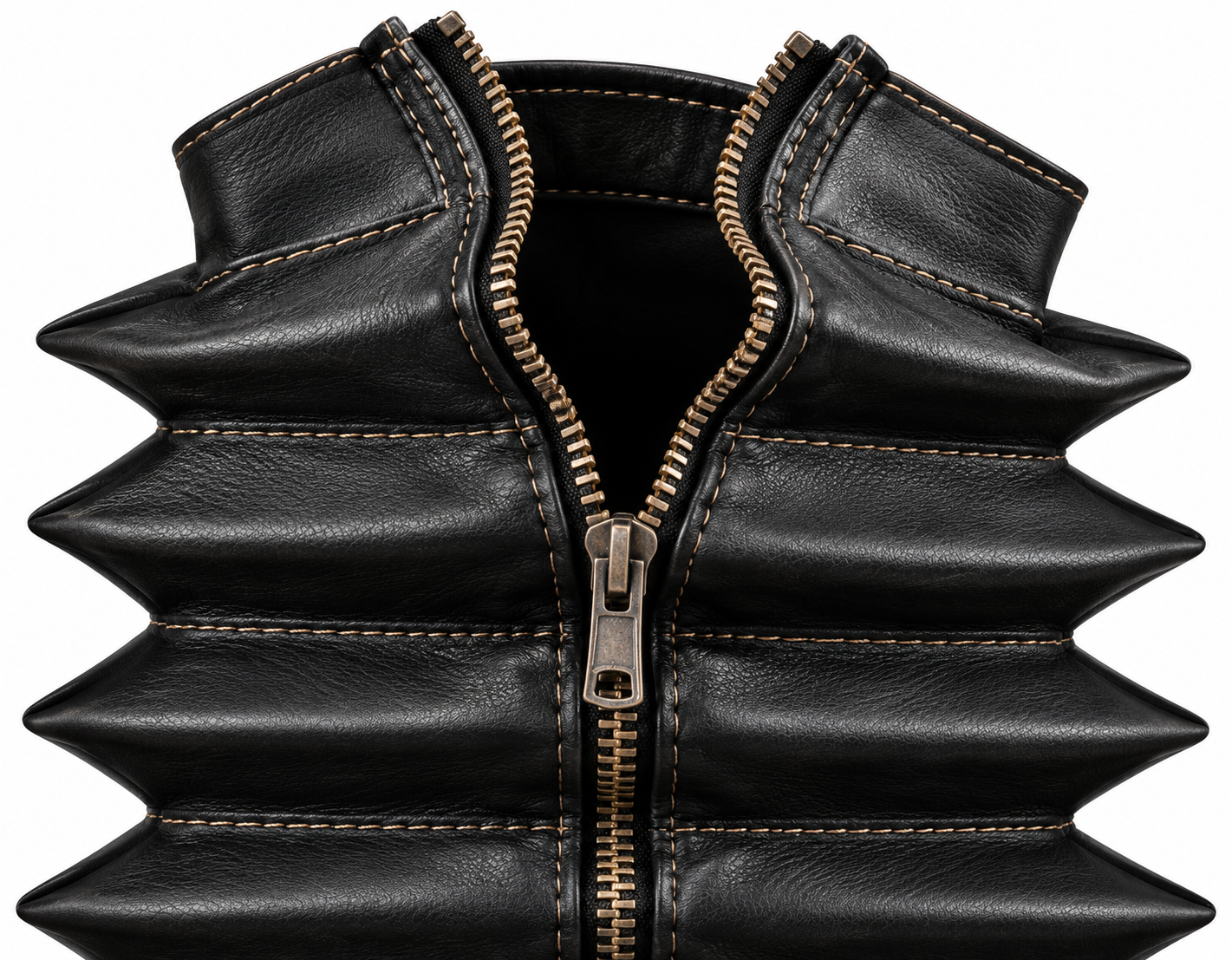

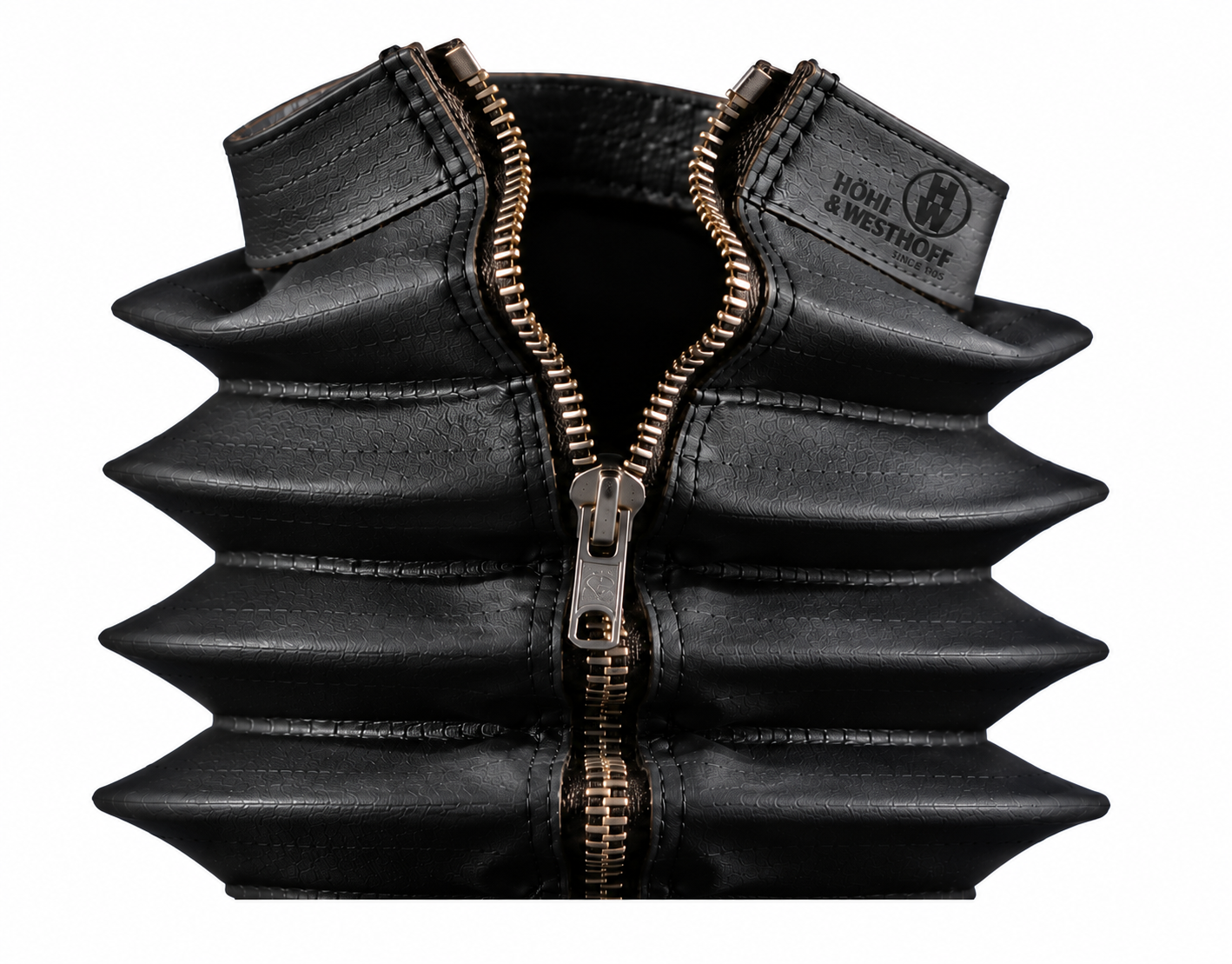

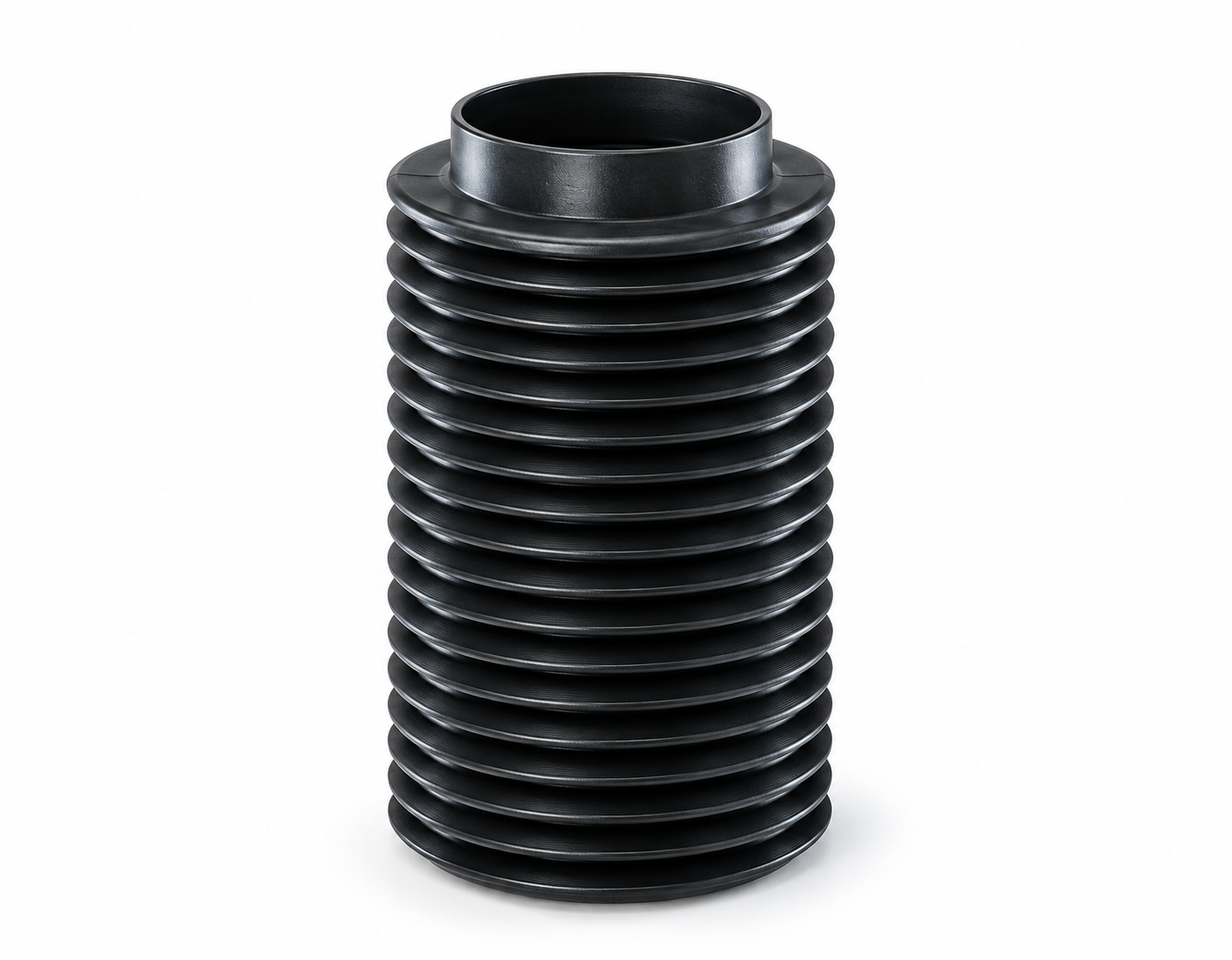

We produce bellows in many different configurations, sizes and materials to meet your most demanding needs. We employ several methods of manufacture from conventional molding techniques to latex dip molding and injection molding. With our available tool-asset we can respectively cover all requirements devoid of emergences of further costs for our handler. For subsequent installation our bellows can be fitted with either a zipper or a velcro fastener. A short minimum length can be achieved by a round sewn or vulcanized model. Even for bigger diameters cost-effective solutions are possible. For any special-purpose solutions please do not hesitate to contact us with your request.












 Faltenbalg & Supplies from one source

Luftsiebe Schlauchschellen
Air sieve Hose clamb


Air sieve

Air sieve for perfect ventilating duct for your bellow

Ø: 8 mm ,ring: brass, sieve: VA completely painted black, article-number: SiebØ8

Hose clamb

H & W Hose clamb: DIN 3017 mit Schneckengewinde, mit 6 Socket head srew SW 7, bandwith 9mm

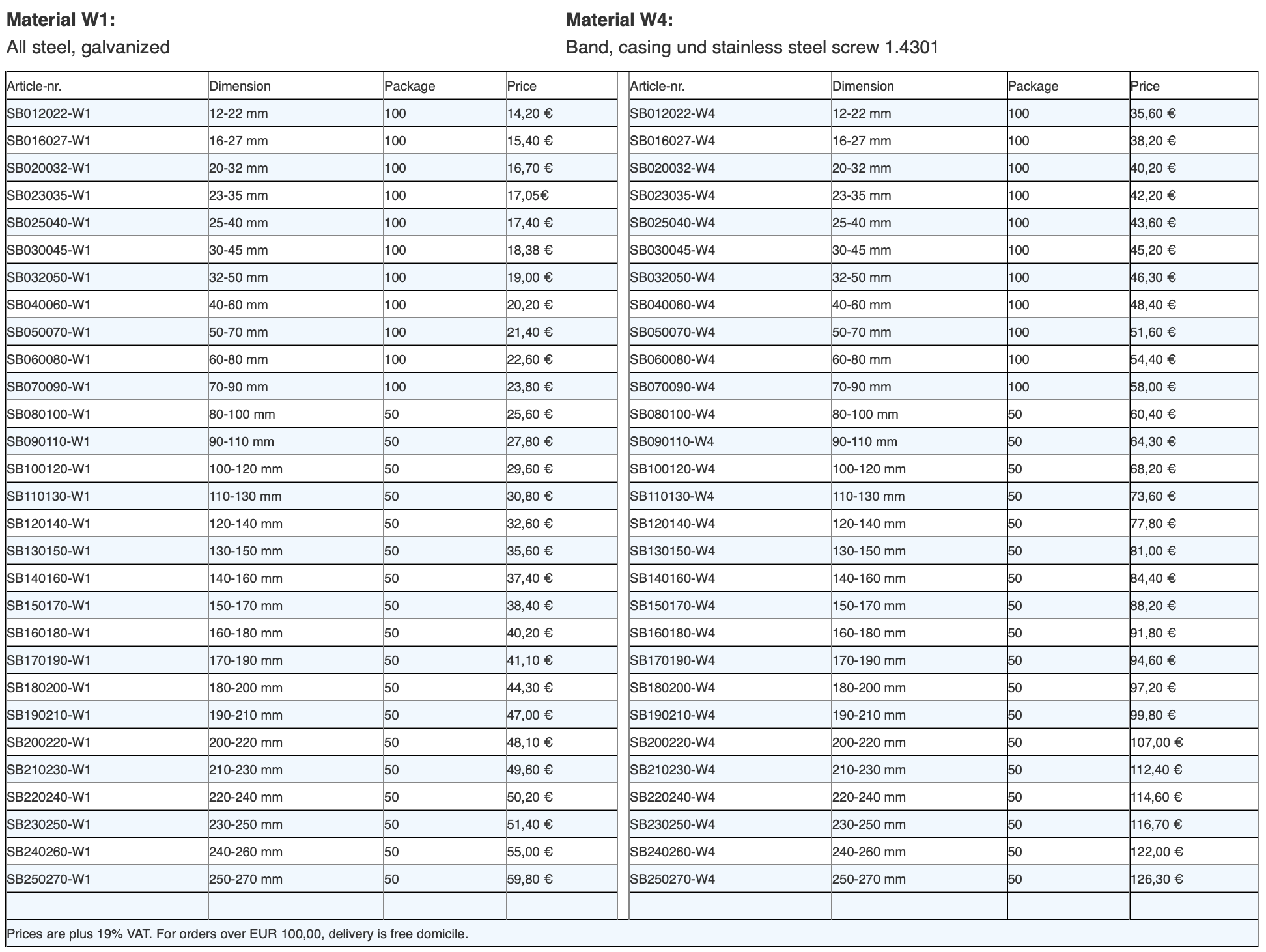

Material W1:
All steel, galvanized
Material W4:
Band, casing und stainless steel screw 1.4301

Article‐nr. Dimension Package Price   Article‐nr. Dimension Package Price
SB012022‐W1 12‐22 mm 100 14,20 € SB012022‐W4 12‐22 mm 100 35,60 €
SB016027‐W1 16‐27 mm 100 15,40 € SB016027‐W4 16‐27 mm 100 38,20 €
SB020032‐W1 20‐32 mm 100 16,70 € SB020032‐W4 20‐32 mm 100 40,20 €
SB023035‐W1 23‐35 mm 100 17,05€ SB023035‐W4 23‐35 mm 100 42,20 €
SB025040‐W1 25‐40 mm 100 17,40 € SB025040‐W4 25‐40 mm 100 43,60 €
SB030045‐W1 30‐45 mm 100 18,38 € SB030045‐W4 30‐45 mm 100 45,20 €
SB032050‐W1 32‐50 mm 100 19,00 € SB032050‐W4 32‐50 mm 100 46,30 €
SB040060‐W1 40‐60 mm 100 20,20 € SB040060‐W4 40‐60 mm 100 48,40 €
SB050070‐W1 50‐70 mm 100 21,40 € SB050070‐W4 50‐70 mm 100 51,60 €
SB060080‐W1 60‐80 mm 100 22,60 € SB060080‐W4 60‐80 mm 100 54,40 €
SB070090‐W1 70‐90 mm 100 23,80 € SB070090‐W4 70‐90 mm 100 58,00 €
SB080100‐W1 80‐100 mm 50 25,60 € SB080100‐W4 80‐100 mm 50 60,40 €
SB090110‐W1 90‐110 mm 50 27,80 € SB090110‐W4 90‐110 mm 50 64,30 €
SB100120‐W1 100‐120 mm 50 29,60 € SB100120‐W4 100‐120 mm 50 68,20 €
SB110130‐W1 110‐130 mm 50 30,80 € SB110130‐W4 110‐130 mm 50 73,60 €
SB120140‐W1 120‐140 mm 50 32,60 € SB120140‐W4 120‐140 mm 50 77,80 €
SB130150‐W1 130‐150 mm 50 35,60 € SB130150‐W4 130‐150 mm 50 81,00 €
SB140160‐W1 140‐160 mm 50 37,40 € SB140160‐W4 140‐160 mm 50 84,40 €
SB150170‐W1 150‐170 mm 50 38,40 € SB150170‐W4 150‐170 mm 50 88,20 €
SB160180‐W1 160‐180 mm 50 40,20 € SB160180‐W4 160‐180 mm 50 91,80 €
SB170190‐W1 170‐190 mm 50 41,10 € SB170190‐W4 170‐190 mm 50 94,60 €
SB180200‐W1 180‐200 mm 50 44,30 € SB180200‐W4 180‐200 mm 50 97,20 €
SB190210‐W1 190‐210 mm 50 47,00 € SB190210‐W4 190‐210 mm 50 99,80 €
SB200220‐W1 200‐220 mm 50 48,10 € SB200220‐W4 200‐220 mm 50 107,00 €
SB210230‐W1 210‐230 mm 50 49,60 € SB210230‐W4 210‐230 mm 50 112,40 €
SB220240‐W1 220‐240 mm 50 50,20 € SB220240‐W4 220‐240 mm 50 114,60 €
SB230250‐W1 230‐250 mm 50 51,40 € SB230250‐W4 230‐250 mm 50 116,70 €
SB240260‐W1 240‐260 mm 50 55,00 € SB240260‐W4 240‐260 mm 50 122,00 €
SB250270‐W1 250‐270 mm 50 59,80 € SB250270‐W4 250‐270 mm 50 126,30 €

Prices are plus 19% VAT. For orders over EUR 100,00, delivery is free domicile.
